@typegpu/sdf

Recommended reading

Most primitive formulas in this package are adapted from Inigo Quilez’s work:

• 2D Distance Functions
• 3D Distance Functions

The @typegpu/sdf package provides signed distance functions and small SDF helpers for TypeGPU and WebGPU projects. It is meant for shader-side shape logic: UI masks, ray-marched scenes, collision-ish distance checks, and texture-based SDF generation.

A signed distance function returns:

• a negative value inside the shape,
• 0 on the boundary,
• a positive value outside the shape.

Note

Shape primitives are centered around the origin. To move, scale, or rotate a shape, apply the inverse transform to the point you pass into the SDF.

Basic usage

Call SDF helpers from TypeGPU functions just like any other TypeGPU resource. Resolving the function includes the SDF code and its dependencies automatically.

import tgpu, { d, std } from 'typegpu';
import * as sdf from '@typegpu/sdf';

const renderRoundedBox = tgpu.fn([d.vec2f], d.vec4f)((uv) => {
  'use gpu';
  const p = uv - 0.5;
  const dist = sdf.sdRoundedBox2d(p, d.vec2f(0.26, 0.12), 0.04);
  const edge = std.max(std.fwidth(dist), 0.001);
  const alpha = 1 - std.smoothstep(-edge, edge, dist);
  const glow = std.exp(-std.abs(dist) * 28) * 0.2;

  const bg = std.mix(d.vec3f(0.93, 0.95, 0.97), d.vec3f(0.74, 0.82, 0.95), uv.y);
  const fill = d.vec3f(0.08, 0.08, 0.1);
  const color = std.mix(bg, fill, alpha) + d.vec3f(1, 0.55, 0.28) * glow;

  return d.vec4f(std.min(color, d.vec3f(1)), 1);
});

Composing shapes

The package includes a few common operators. They take distances as input, so you can combine any primitive or custom SDF.

import tgpu, { d, std } from 'typegpu';
import * as sdf from '@typegpu/sdf';

const sceneSdf = tgpu.fn([d.vec2f], d.f32)((p) => {
  'use gpu';
  const disk = sdf.sdDisk(p - d.vec2f(-0.18, 0), 0.22);
  const box = sdf.sdRoundedBox2d(p - d.vec2f(0.18, 0), d.vec2f(0.18), 0.05);

  return sdf.opSmoothUnion(disk, box, 0.12);
});

const renderSmoothUnion = tgpu.fn([d.vec2f], d.vec4f)((uv) => {
  'use gpu';
  const dist = sceneSdf((uv - 0.5) * 1.08);
  const edge = std.max(std.fwidth(dist), 0.001);
  const alpha = 1 - std.smoothstep(-edge, edge, dist);
  const glow = std.exp(-std.abs(dist) * 26) * 0.2;

  const bg = std.mix(d.vec3f(0.93, 0.95, 0.97), d.vec3f(0.74, 0.82, 0.95), uv.y);
  const fill = d.vec3f(0.07, 0.075, 0.095);
  const color = std.mix(bg, fill, alpha) + d.vec3f(1, 0.55, 0.28) * glow;

  return d.vec4f(std.min(color, d.vec3f(1)), 1);
});

For more on combining distance fields, see Inigo Quilez’s smooth minimum and distance functions articles.

3D SDFs

The 3D primitives follow the same rules as the 2D ones. They are useful for ray marching and for generating volumetric fields.

import tgpu, { d, std } from 'typegpu';
import * as sdf from '@typegpu/sdf';

const sceneSdf = tgpu.fn([d.vec3f], d.f32)((p) => {
  'use gpu';
  const sphere = sdf.sdSphere(p - d.vec3f(-0.2, 0, 0), 0.32);
  const box = sdf.sdRoundedBox3d(p - d.vec3f(0.22, 0, 0), d.vec3f(0.22), 0.04);

  return sdf.opSmoothUnion(sphere, box, 0.08);
});

const normalAt = tgpu.fn([d.vec3f], d.vec3f)((p) => {
  'use gpu';
  const e = 0.002;
  return std.normalize(d.vec3f(
    sceneSdf(p + d.vec3f(e, 0, 0)) - sceneSdf(p - d.vec3f(e, 0, 0)),
    sceneSdf(p + d.vec3f(0, e, 0)) - sceneSdf(p - d.vec3f(0, e, 0)),
    sceneSdf(p + d.vec3f(0, 0, e)) - sceneSdf(p - d.vec3f(0, 0, e)),
  ));
});

const march = tgpu.fn([d.vec3f, d.vec3f], d.vec2f)((ro, rd) => {
  'use gpu';
  let t = d.f32(0);
  let hit = d.f32(0);

  for (let i = 0; i < 96; i++) {
    const dist = sceneSdf(ro + rd * t);
    if (dist < 0.002) {
      hit = 1;
      break;
    }
    t += dist;
    if (t > 6) {
      break;
    }
  }

  return d.vec2f(t, hit);
});

const renderRayMarching = tgpu.fn([d.vec2f], d.vec4f)((uv) => {
  'use gpu';
  const screen = uv * 2 - 1;
  const ro = d.vec3f(0, 0.05, -2.4);
  const rd = std.normalize(d.vec3f(screen, 1.25));
  const result = march(ro, rd);

  const bg = std.mix(d.vec3f(0.93, 0.95, 0.97), d.vec3f(0.74, 0.82, 0.95), uv.y);
  if (result.y < 0.5) {
    return d.vec4f(bg, 1);
  }

  const p = ro + rd * result.x;
  const normal = normalAt(p);
  const lightDir = std.normalize(d.vec3f(-0.35, 0.7, -0.55));
  const viewDir = std.normalize(rd * -1);
  const diffuse = std.max(std.dot(normal, lightDir), 0);
  const rim = (1 - std.max(std.dot(normal, viewDir), 0)) ** 2;

  const fill = std.mix(d.vec3f(0.04, 0.045, 0.06), d.vec3f(0.09, 0.1, 0.13), p.x + 0.5);
  const color = fill * (0.28 + diffuse * 0.9) + d.vec3f(1, 0.55, 0.28) * rim * 0.35;

  return d.vec4f(std.min(color, d.vec3f(1)), 1);
});

For 2D-to-3D shapes, use opExtrudeX, opExtrudeY, or opExtrudeZ with a 2D distance value and a half-height.

Jump flood textures

createJumpFlood builds an executor for the Jump Flood Algorithm. It turns a shader-side classifier into two sampled output textures:

• sdfOutput, an rgba16float texture with the signed distance in the red channel,
• colorOutput, an rgba8unorm texture for data copied from the nearest inside pixel.

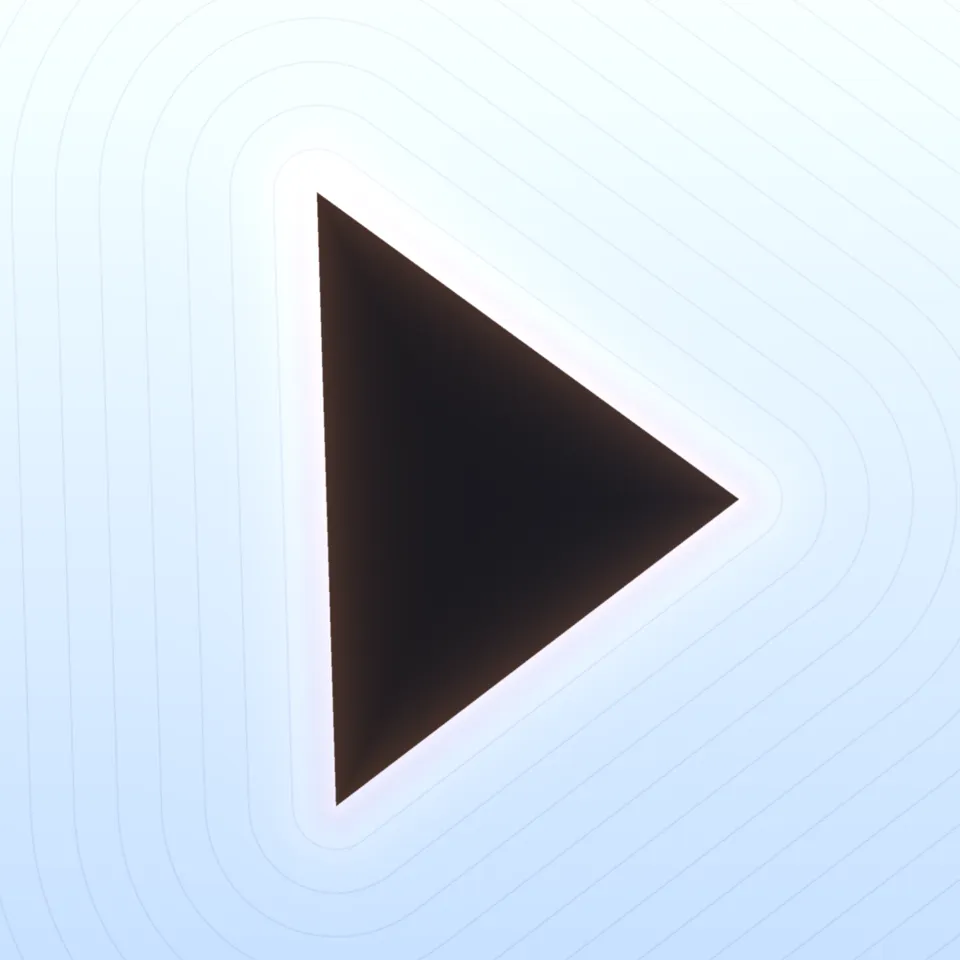

Here the source shape is a triangle mask baked into a texture first, then jump flooded into an SDF texture.

import tgpu, { d, std } from 'typegpu';
import * as sdf from '@typegpu/sdf';

const root = await tgpu.init();

const sourceTexture = root
  .createTexture({
    size: [512, 512],
    format: 'rgba8unorm',
  })
  .$usage('storage', 'sampled');

const sourceWriteView = sourceTexture.createView(d.textureStorage2d('rgba8unorm'));
const sourceReadView = sourceTexture.createView();

const edge = (p: d.v2f, a: d.v2f, b: d.v2f) => {
  'use gpu';
  const ab = b - a;
  const ap = p - a;
  return ab.x * ap.y - ab.y * ap.x;
};

const bakeTriangle = root.createGuardedComputePipeline((x, y) => {
  'use gpu';
  const size = std.textureDimensions(sourceWriteView.$);
  const uv = (d.vec2f(x, y) + 0.5) / d.vec2f(size);

  const a = d.vec2f(0.33, 0.2);
  const b = d.vec2f(0.77, 0.52);
  const c = d.vec2f(0.35, 0.84);

  let color = d.vec4f();
  if (edge(uv, a, b) >= 0 && edge(uv, b, c) >= 0 && edge(uv, c, a) >= 0) {
    color = d.vec4f(1, 0.82, 0.42, 1);
  }

  std.textureStore(sourceWriteView.$, d.vec2u(x, y), color);
});

bakeTriangle.dispatchThreads(512, 512);

const sourceLayout = tgpu.bindGroupLayout({
  source: { texture: d.texture2d() },
});
const sourceBindGroup = root.createBindGroup(sourceLayout, {
  source: sourceReadView,
});

const runner = sdf
  .createJumpFlood({
    root,
    size: { width: 512, height: 512 },
    classify: (coord) => {
      'use gpu';
      const source = std.textureLoad(sourceLayout.$.source, coord, 0);
      return source.w > 0.5;
    },
    getSdf: (_coord, size, signedDist) => {
      'use gpu';
      const minDim = std.min(size.x, size.y);
      return signedDist / d.f32(minDim);
    },
    getColor: (_coord, _size, _signedDist, insidePx) => {
      'use gpu';
      const source = std.textureLoad(sourceLayout.$.source, insidePx, 0);
      return d.vec4f(source.xyz, 1);
    },
  })
  .with(sourceBindGroup);

runner.run();

const sdfView = runner.sdfOutput.createView();
const colorView = runner.colorOutput.createView();
const sampler = root.createSampler({ magFilter: 'linear', minFilter: 'linear' });

const renderJumpFlood = tgpu.fn([d.vec2f], d.vec4f)((uv) => {
  'use gpu';
  const dist = std.textureSampleLevel(sdfView.$, sampler.$, uv, 0).x;
  const seed = std.textureSampleLevel(colorView.$, sampler.$, uv, 0).xyz;
  const edge = std.max(std.fwidth(dist), 0.0015);
  const alpha = 1 - std.smoothstep(-edge, edge, dist);
  const glow = std.exp(-std.abs(dist) * 28) * 0.18;
  const band = std.abs(std.fract(std.abs(dist) * 22) - 0.5);
  const contour = (1 - std.smoothstep(0.46, 0.5, band)) *
    std.smoothstep(0.012, 0.04, std.abs(dist)) *
    0.12;

  const bg = std.mix(d.vec3f(0.93, 0.95, 0.97), d.vec3f(0.74, 0.82, 0.95), uv.y);
  const field = bg + d.vec3f(0.36, 0.5, 0.76) * contour;
  const fill = d.vec3f(0.07, 0.075, 0.095) + seed * 0.045;
  const color = std.mix(field, fill, alpha) + d.vec3f(1, 0.55, 0.28) * glow;

  return d.vec4f(std.min(color, d.vec3f(1)), 1);
});

If your classifier or output getters need extra textures, buffers, or samplers, create a bind group for them and attach it with runner.with(bindGroup). Call runner.destroy() when the generated textures are no longer needed.

Available utilities

Group	Exports
2D primitives	sdDisk, sdBox2d, sdRoundedBox2d, sdLine, sdBezier, sdBezierApprox, sdPie
3D primitives	sdSphere, sdBox3d, sdRoundedBox3d, sdBoxFrame3d, sdLine3d, sdPlane, sdCapsule
Operators	opUnion, opSmoothUnion, opSmoothDifference, opExtrudeX, opExtrudeY, opExtrudeZ
Texture generation	createJumpFlood, classifySlot, JumpFlood

For parameter details, hover the functions in your editor or read the JSDoc in the package source.

Examples

• Jelly Switch uses SDFs for a soft 3D interaction.
• Suika SDF mixes texture SDFs with a physics-driven scene.
• Radiance Cascades (with drawing) uses createJumpFlood as input for global illumination.
